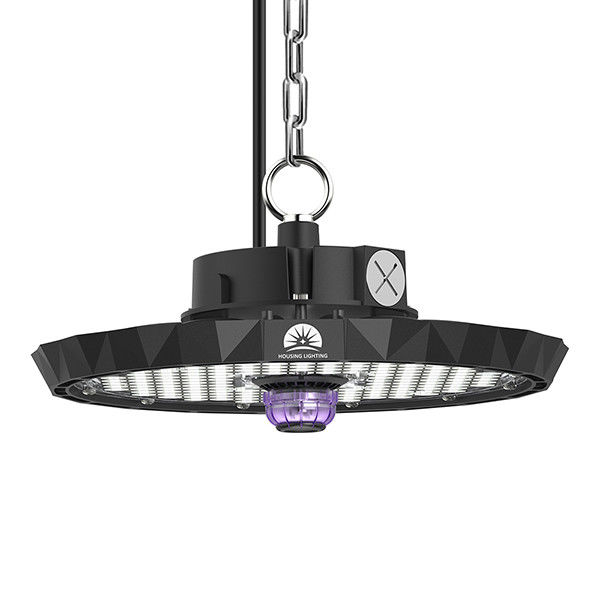

4000K 100W 150W UFO Led High Bay Light Aluminum Power Factor 9.5 200lm/w IP65 for Industrial Warehouse Illumination

4000K 100W 150W UFO Led High Bay Light Aluminum Power Factor 9.5 200lm/w IP65 for Industrial Warehouse Illumination

Brand Name:	HS
Model Number:	HS-UFO-E1
MOQ:	100
Price:	Negotiation
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE RoHS

Document:

Datasheet for LED High Bay ...n).pdf

Dimensions:

φ344x133mm

Power:

Single Color：200W Dual Color：150W

Input Voltage:

AC200-240V, 50/60Hz

Power Factor:

>9.5

Color Temp.:

3000K/4000K/5000K/6000K/CCT Changeable

Material:

Aluminum

UGR:

<19/ <22/ <25

Highlight:

150W UFO Led High Bay Light

100W UFO Led High Bay Light

4000K UFO Led High Bay Light

Product Description

Features:

● Self-designed Diamond Like Shape, Unique and Elegant

● Self-designed Smoke Transducer Like Structure for Excellent Heat Dissipation

● Special Designed Cross-ventlation Hole at the Center Ensuring a More Uniform Heat Dissipation and Lower Working Temperature

● IP65 Rated NEMA & Zhaga Socket for Removable Smart Controller or Sensor

● 3 Types of Optical Lens:

Switchable Lens with 3 Different Beam Angles: 60°&90°&120°, Easy for Stock

Annular Lens for Super High Lumen Efficiency of 210lm/W: 60°/90°/120°

Honey-Comb Lens with Reflector for Unique Appearance and Lower UGR(<19)

● Die-casting Aluminum Heatsink With Metal Powder Spraying

● Top Rated PC Lens with High Transmittance up to 94%

● Different UGR for Different Applications: UGR<25, UGR<22, UGR<19, UGR<16

● Non-Dimmable, 0-10V, DALI, Zigbee 3.0 Smart Control, Motion Sensor, Emergency

● One for All by DIP CCT Switch & DIP Power Switch

● lP65, lK08

● 5 Years Warranty

Technical Parameters:

Model NO.	HS-UFO-E1
Dimensions	φ344x133mm
Power	Single Color:200W Dual Color:150W
Luminous Flux	28000
Lumen Efficiency	200lm/W
Input Voltage	AC200-240V,50/60Hz
Power Factor	>9.5
Color Temp.	3000K/4000K/5000K/6000K/CCT Changeable
CRI	>70
SDCM SDCM<5
Lifespan	L80B10=100,000 Hours
UGR	<19/<22/<25
Beam Angle	60°/90°/120°
Stand-by Dimming Level	10%/20%/30%/50%
Dimming Type	Non Dimmable/0-10V/DALI/Zigbee 3.0 Tuya Smart Control
IP Rating	IP65
IK Rating	IK08
Main Materials	Die-casting Aluminum
Working Temperature	-20℃-40℃
THD	<15%
Isulation Class	CLASS II
Safety Standards	EN IEC60598-2-1
EMC	EN 55015,EN IEC61000-3-2
Certificate	CE RoHS
Warranty	5 Years
